STEP 1

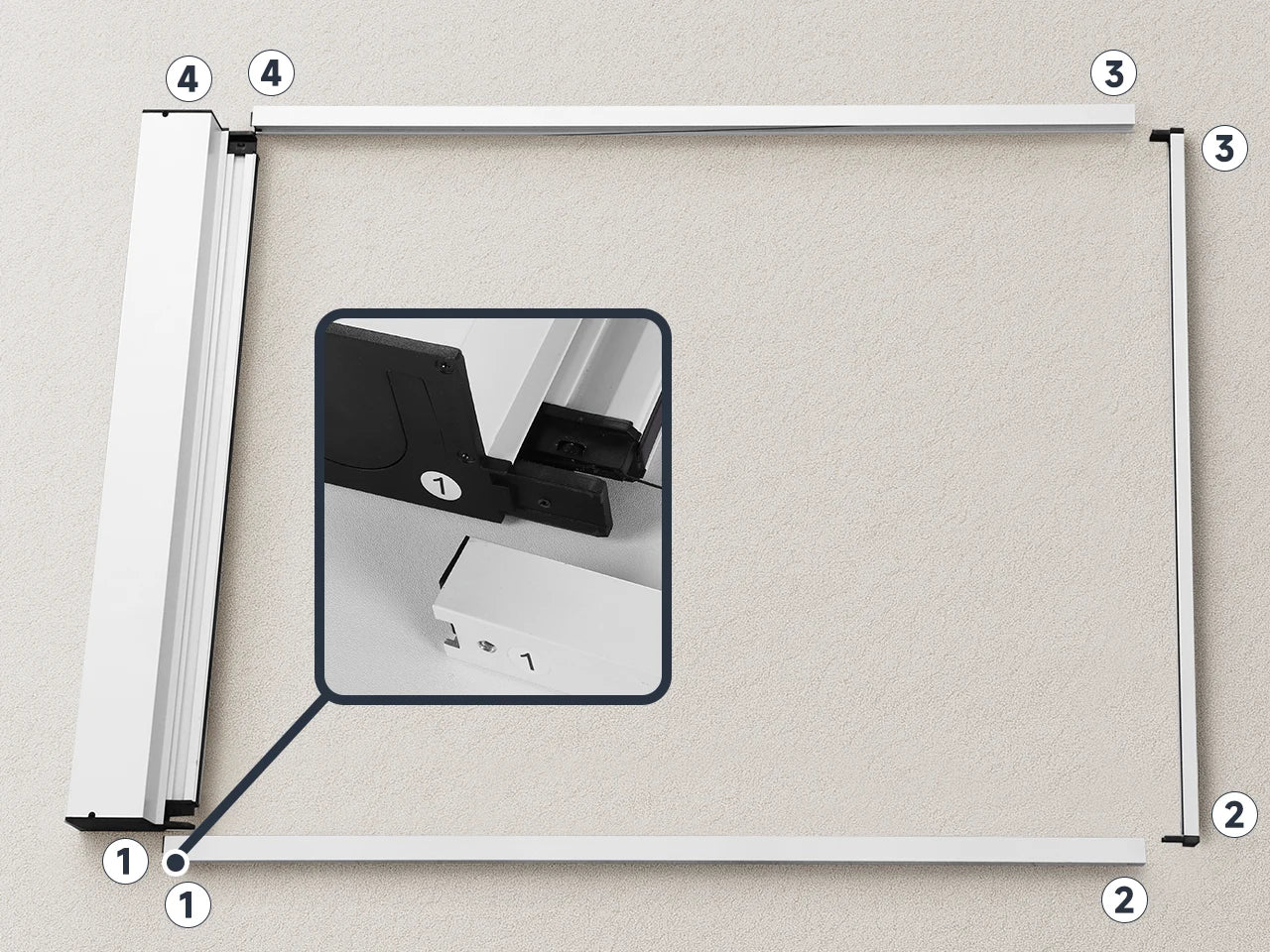

Lay Out the Frame Components
Choose a clean, flat surface and carefully place all frame parts inposition:
- Set the top rail and bottom rail parallel to each other.
- Position the two side rails vertically, one on each side, so they align with the ends of the top and bottom rails.
STEP 2

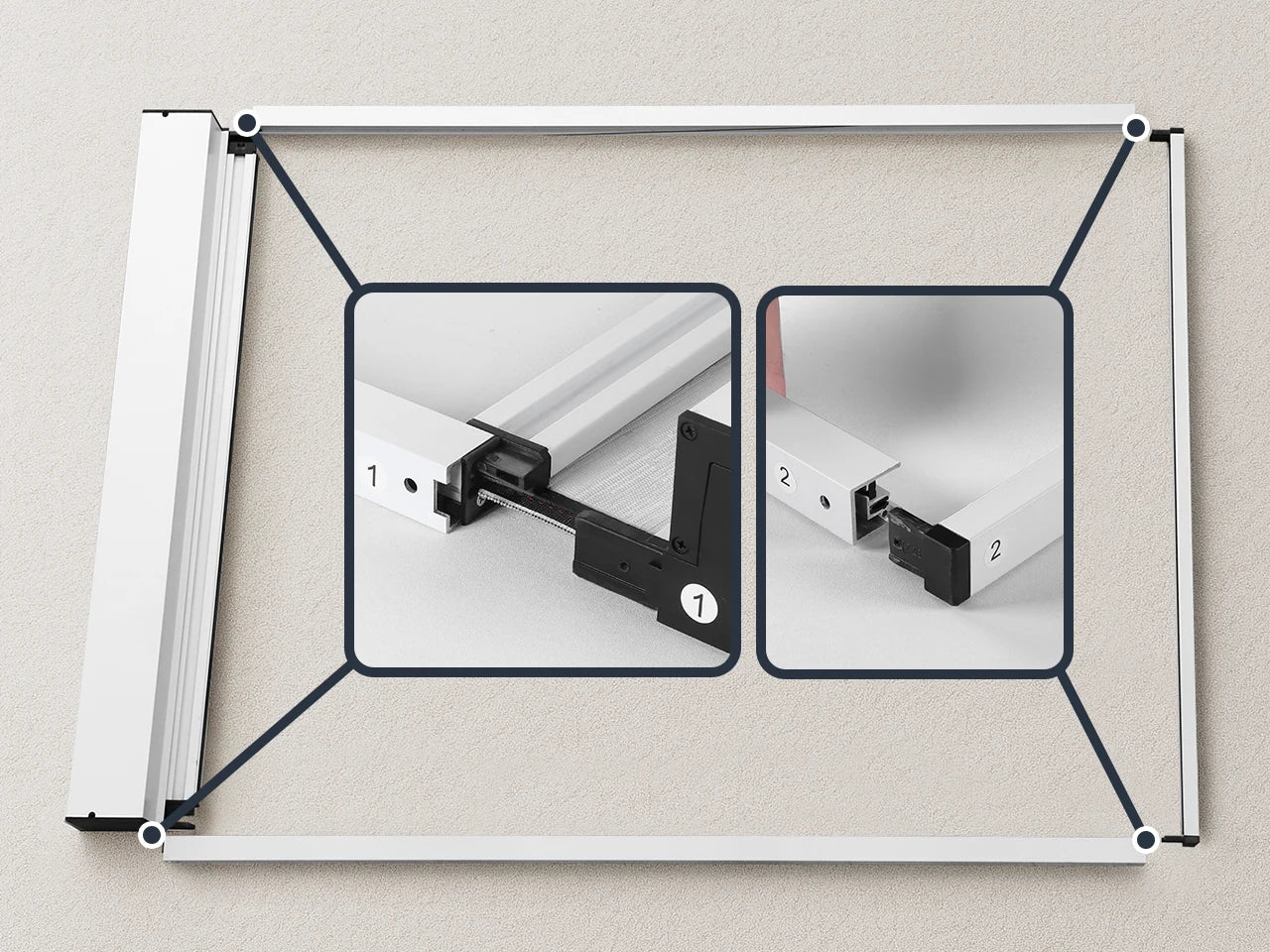

Connect the Frame Sections
Each rail has a numbered label to guide assembly. Match the numbers on connecting ends (e.g., 1 to 1, 2 to 2, 3 to 3, 4 to 4) and join the rails together until all four sides form a complete frame.
STEP 3

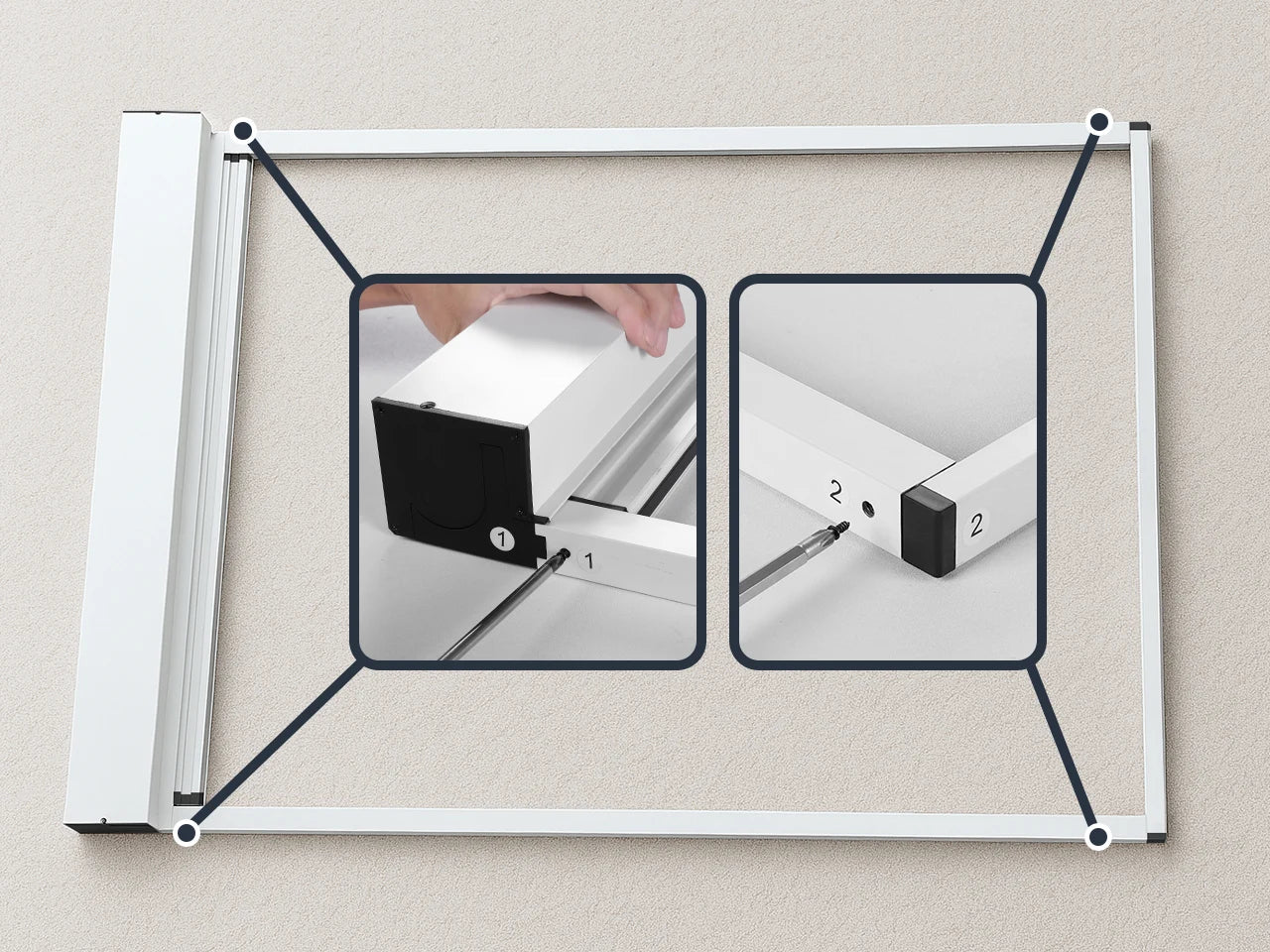

Secure the Connections
Using a screwdriver, insert and tighten the screws at the four connection points (next to numbers 1, 2, 3, and 4). This locks the frame in place and ensures stability during operation.
STEP 4

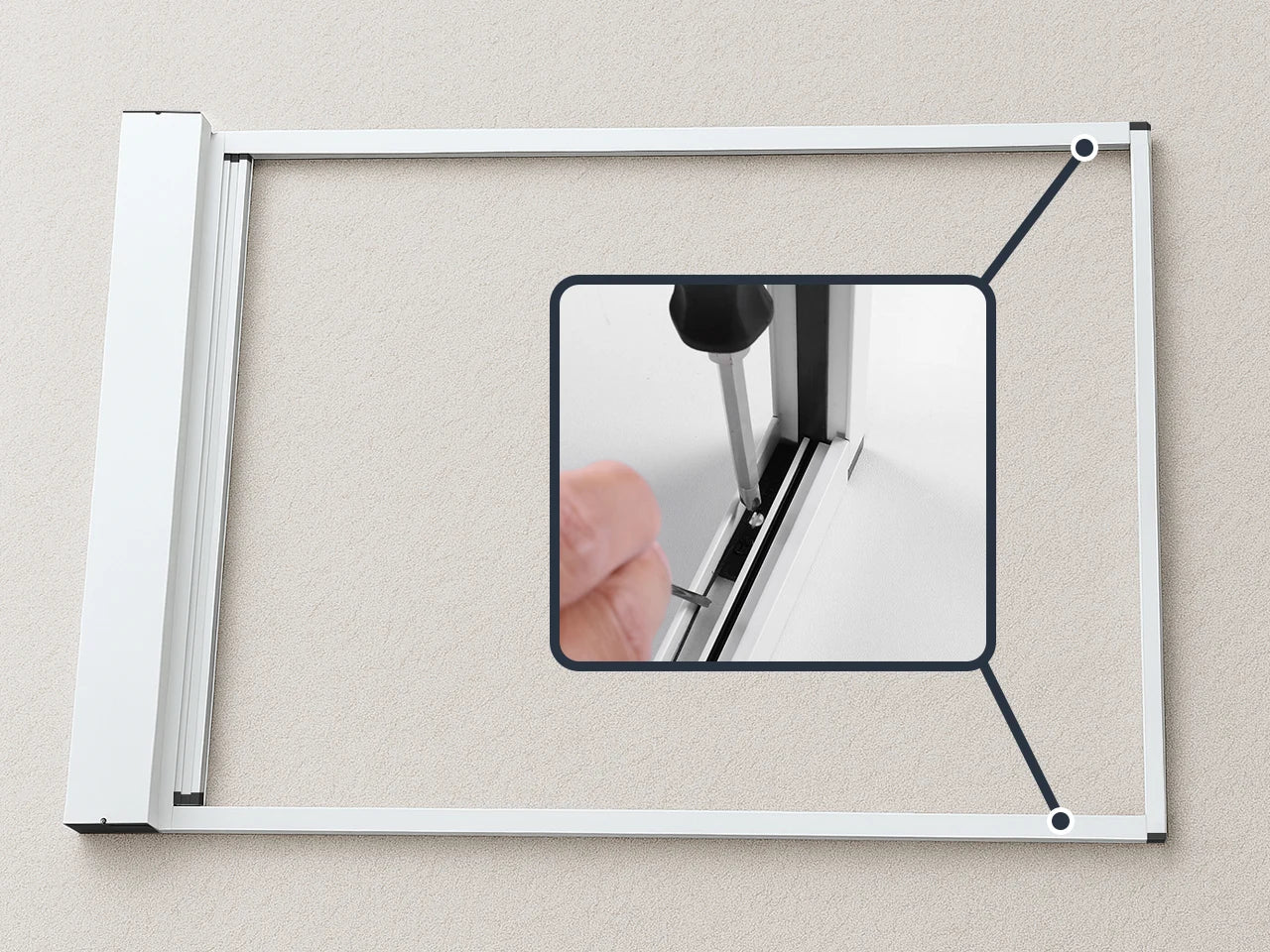

Adjust Fabric Tension
Stand the frame upright. At the marked adjustment points, turn the screws clockwise 2-3 times to tighten the fabric. Rotate the frame and repeat on the other side so the shade moves smoothly.
STEP 5

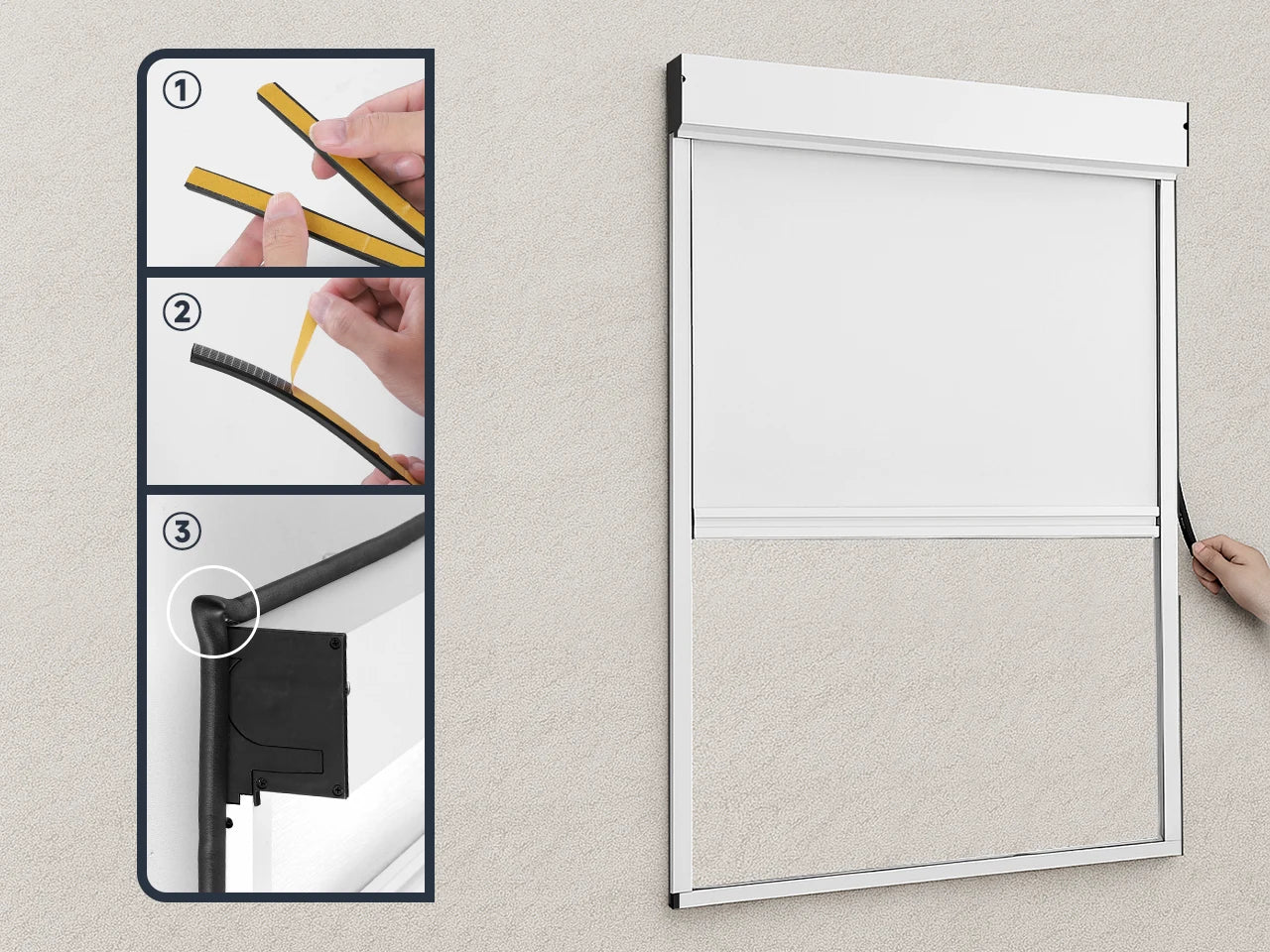

Apply the Adhesive Seal
- Peel off the protective backing from the adhesive tape.
- Run the tape along the full perimeter of the frame, pressing firmly to ensure adhesion.
- At each corner, leave a slight overlap for a continuous seal.
STEP 6

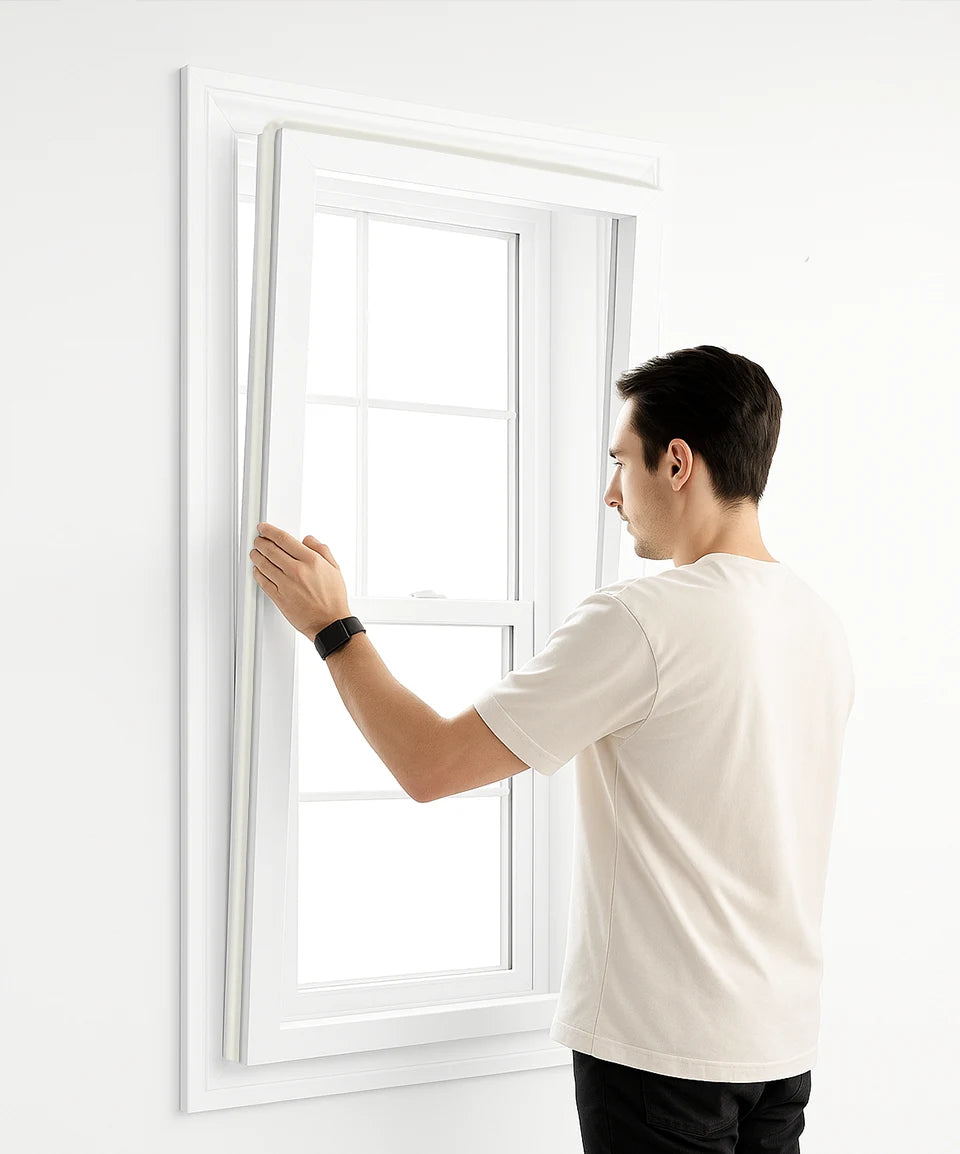

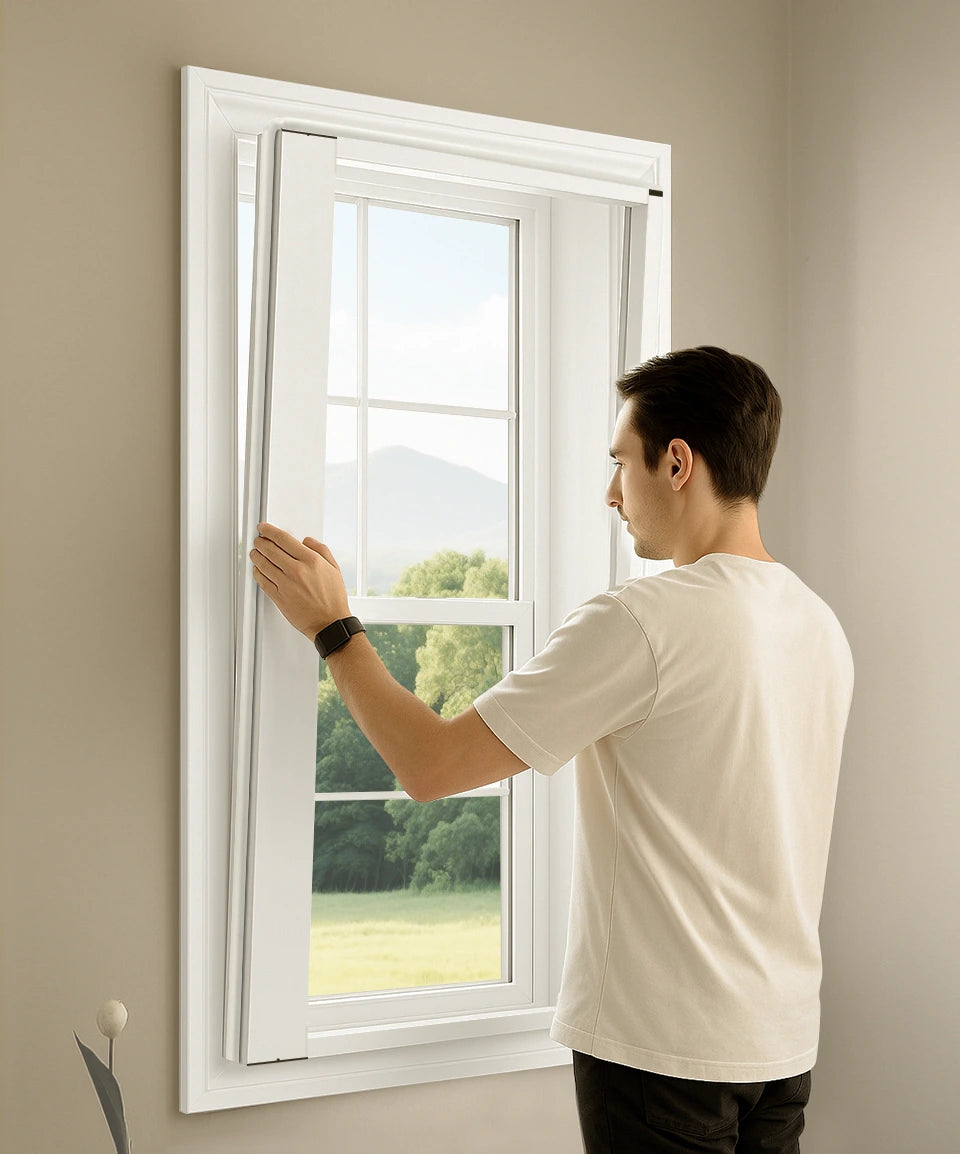

Install into the Window Recess
- Carefully lift the assembled shade and place it into your window recess.
- Press the frame evenly into place, ensuring the adhesive fully contacts the window surface.
- Check that the shade operates smoothly in all directions.
